【供应】全自动皮壳机
  • 【供应】全自动皮壳机
  • 当前价: 40000.0 元/台 (不含运费)
  • 最小起订: 1台
  • 供货总量: 1台
  • 最新修改: 2015-06-01 14:15:51.0
公司信息

东莞市力顺源机械有限公司

联 系 人:罗敏 女士
联系电话:86 - 769 - 88116769
手    机:13798915058
电子信箱:ly@dglyjx.com
所 在 地:广东 东莞
公司地址:东莞市道滘镇南丫南阁东路
  • 产品型号:LY-500PKJ
  • 产品规格:500
  • 原 产 地:东莞
  • 适用范围:月饼盒,文件夹,笔记本,手机盒,茶叶盒,棋盘,台历等相关产品。

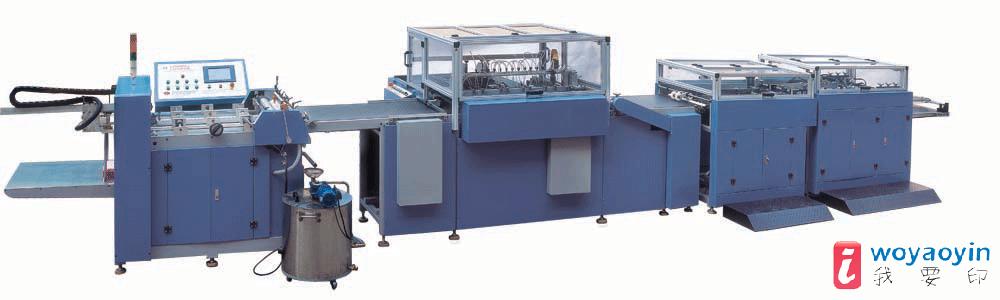

  • 详细描述:本机是流水线输送组合式自动皮壳机,可以自动完成封面过胶,
    多块常规纸板定位及四边包边整平,速度快,精度高。
    机台可分开单台使用,如:过胶,定位和四面包边,且能达到理想效果和效率。
    整机采用PLC程序和变频控制,自动检测故障,操作方便,更换产品灵活。
    本机适用于各类书壳,如:月饼盒,文件夹,笔记本,手机盒,棋盘,台历等相关产品。

    This machine operate as pipeline, sending &pasting paper automatically, sending and positioning cardboard automatically, and then folding four sides still automatically. It is can used several pieces cardboards together. It is running high speed and high accuracy.
    This machine can be divided and used in single machine, such as: pasting, positioning and folding four sides. It can achieve the desired result and efficiency.
    It adopts PLC control procedures and transducer, examine the malfunction automatically, it is very easy to operate and change the different products.
    It is applies to hard cover, gift boxes, files, calendar, chessboard etc.

    型号 Model LY-500PKJ
    电源 Power supply 380V/50HZ
    最大包边尺寸 Operate size (max) 900*500mm
    最小包边尺寸 Operate size (mix) 200*100mm
    机器功率 Machine Power 20KW
    工作速度 Work speed 20-30pcs/minute
    气压(帕) Air pressure 0.7Pa
    机器尺寸(长*宽*高) Mainframe Dimension 10370*2200*1580mm
    机器重量 Machine Weight 4800KG
  • 售后服务:国内外都有售后
